Key Features and Benefits
- Dots and lines down to 50 μm(.002 in.)
- High dispensing flow rates
- Precise exit apertures
- Reduced back pressure
- Resists clogging and stringing, improves fluid break-off
- Convenient color coded hubs
- Thin Wall design allows use of smaller gages
without sacrificing flow rate - Minimal run-out
- Reduced process variability
- Increased accuracy

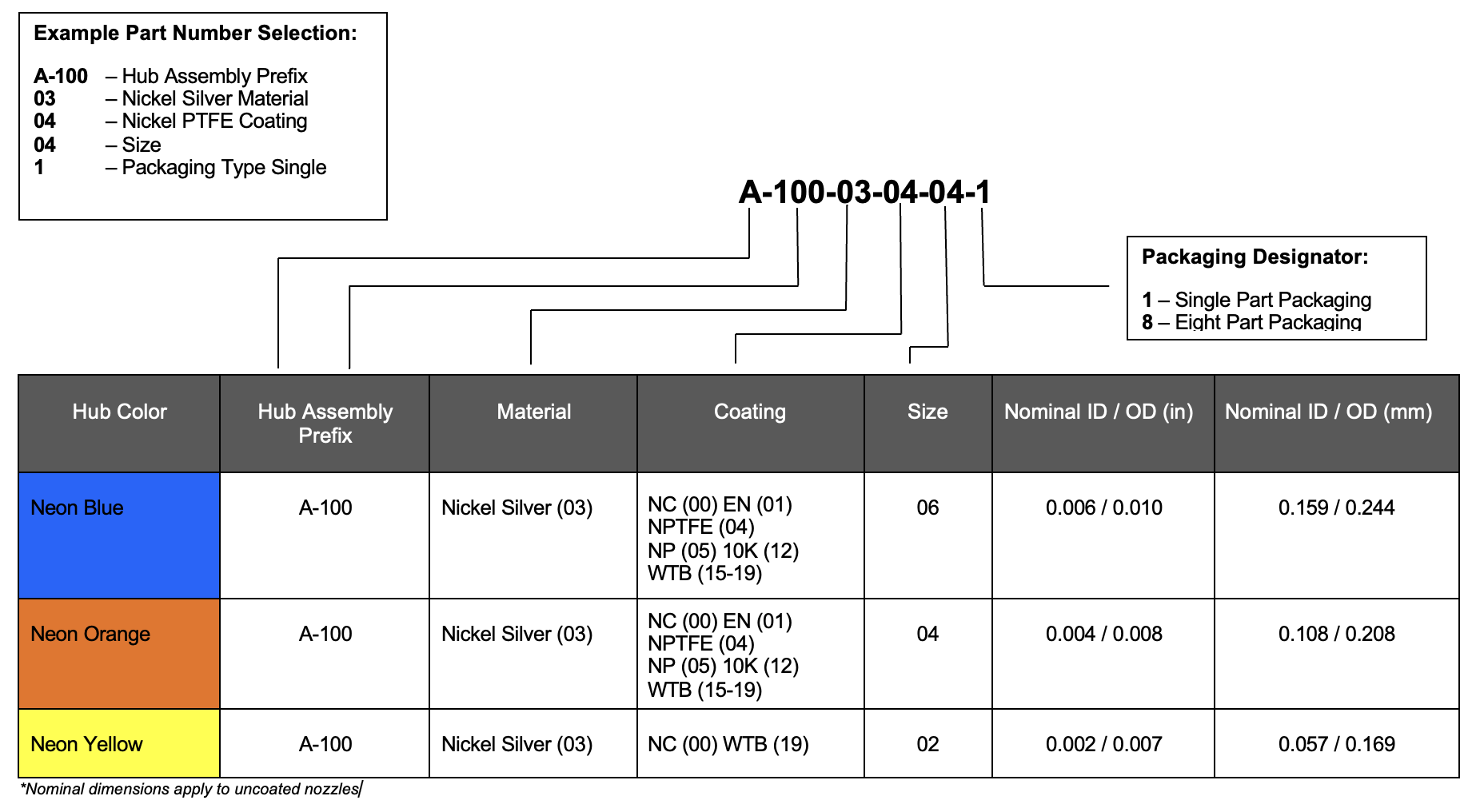

Available Coatings and Materials
Material:
Nickel Silver
UNS C73500
P/N Designator 03
Coating:
NC
EN
NPTFE
NP
10K
WTB
– No Coating
– Electroless Nickel
– Nickel PTFE
– Nickel Polymer Type SLK
– Nickel Polymer Type 10K
– WetBloc film
P/N Designator 00
P/N Designator 01
P/N Designator 04
P/N Designator 05
P/N Designator 12
P/N Designator 15-19 *Contact for Details
